Danfoss KP 15 Dual Pressure Switch 060-124391 – High/Low Pressure Cutout for HVAC & Refrigeration

Danfoss KP 15 Dual Pressure Switch (Code: 060-124391)

Ensure maximum protection and optimal performance for your refrigeration and air conditioning systems with the Original Danfoss KP 15 Dual Pressure Switch. Designed for heavy-duty commercial and industrial HVAC applications, this dual pressure switch reliably regulates both Low Pressure (LP) and High Pressure (HP) cutouts to protect compressors against system failure.

Key Features & Specifications:

• Brand: Danfoss (Made in Poland)
• Model / Code: KP 15 / 060-124391
• Application: Refrigeration systems, Air Conditioning (HVAC), and Commercial Compressors.
• Medium: Fluorinated Refrigerants (R22, R134a, R404A, R407C, R507A) and Air.
• Low Pressure (LP) Range: -0.2 to 7.5 bar (-6 inHg to 108 psig)
• LP Differential (DIFF): 0.7 to 4.0 bar (10 to 58 psi)
• High Pressure (HP) Range: 8 to 32 bar (116 to 465 psig)
• HP Differential: Fixed (approx. 4 bar / 58 psi)
• Pressure Connection: 1/4 in (6 mm) Flare / Male Connection with Cover
• Contact Function: SPDT (Single Pole Double Throw)
• Enclosure Rating: IP30 / IP44 (with protective cover)

Why Choose Danfoss KP 15?

• Dual System Protection: Combines High Pressure Cutout and Low Pressure Control in a single compact unit.

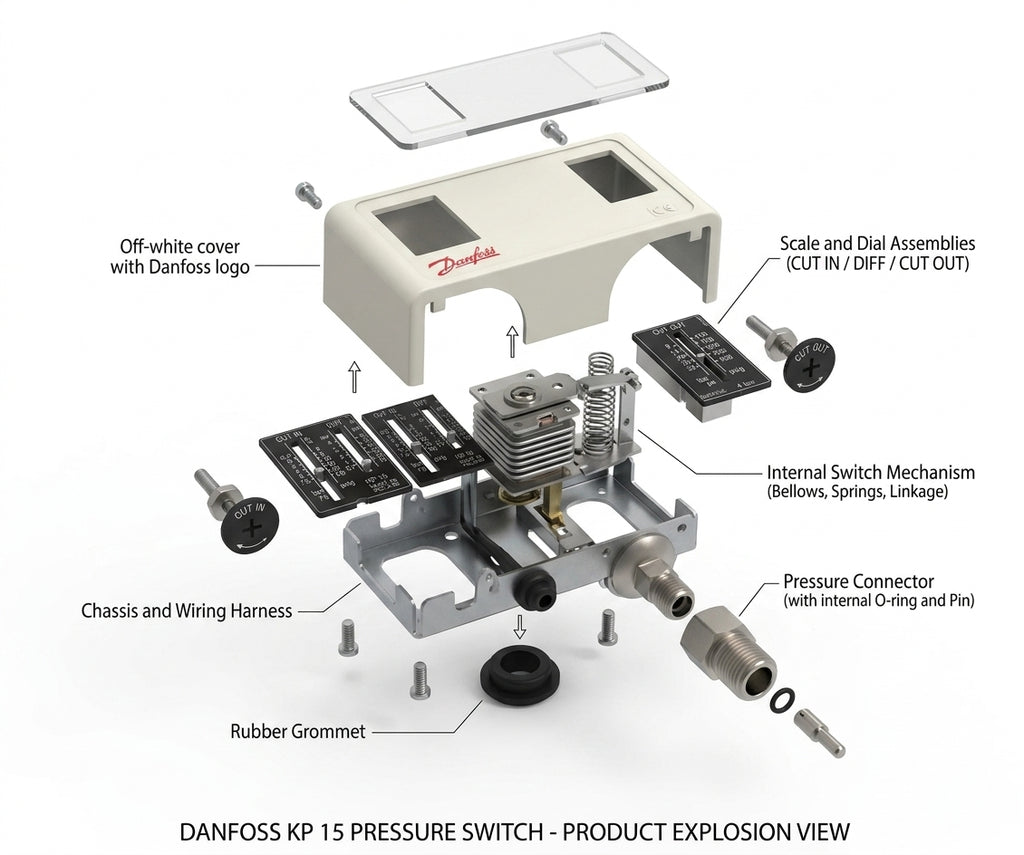

• High Precision Mechanism: Heavy-duty internal bellows and snap-action switch design for immediate electrical signal response.
• Vibration-Resistant: Engineered to withstand harsh industrial vibrations and pulsation.

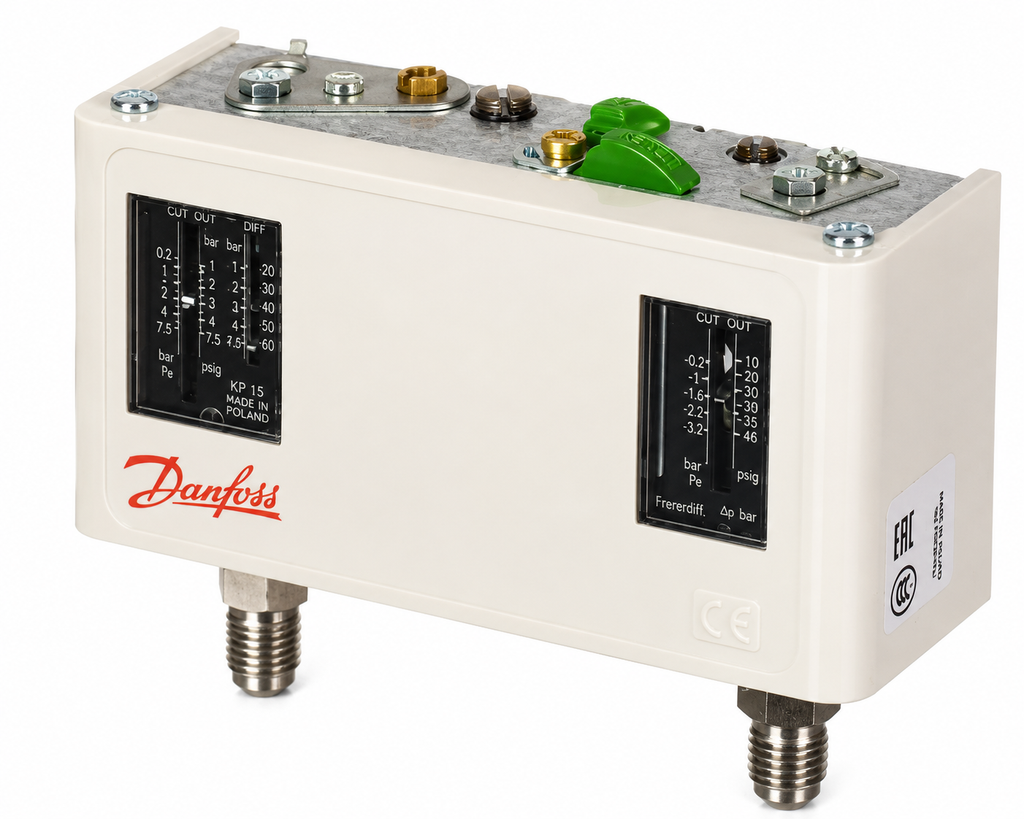

• Easy Installation: Clear front-facing scales (bar & psig) for easy adjustment and monitoring.

Package Includes:

• 1 x Danfoss KP 15 Pressure Switch (060-124391)
• 1 x Mounting Bracket Kit (Packaged)
• 1 x Instruction Manual / Installation Guide
